Brake Pads

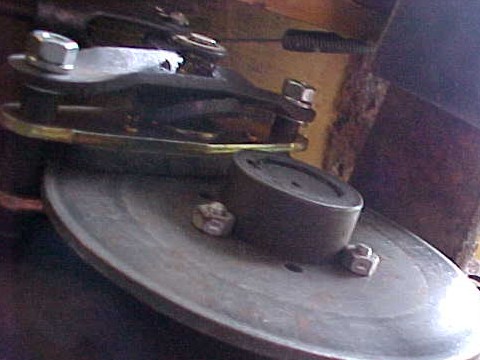

Note slight offset in new "Z" shaped connecting rod.

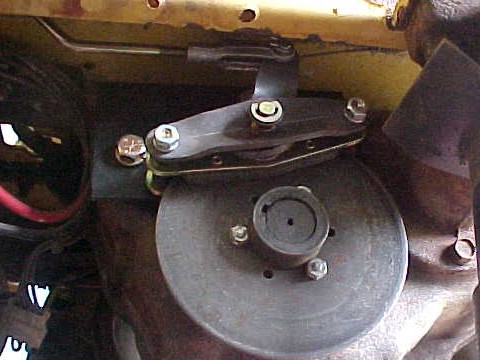

Also note that flange on rotor hub is facing towards transaxel.

Note large pad area.

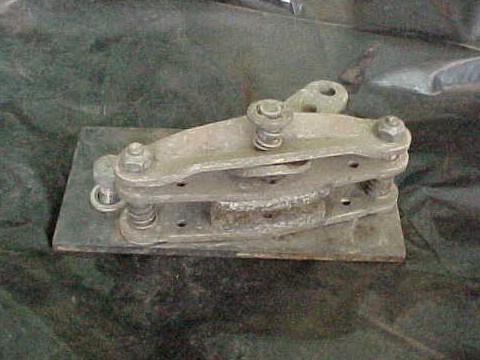

Removed pads, I assume to be from oringal GE brake upgrade.
Note that pad surface area is not as large as on new pads from Bill Gunn.

View the orginal GE M-30 Brake Kit installation instructions for more information.

Jim Coate
April 26, 2003
